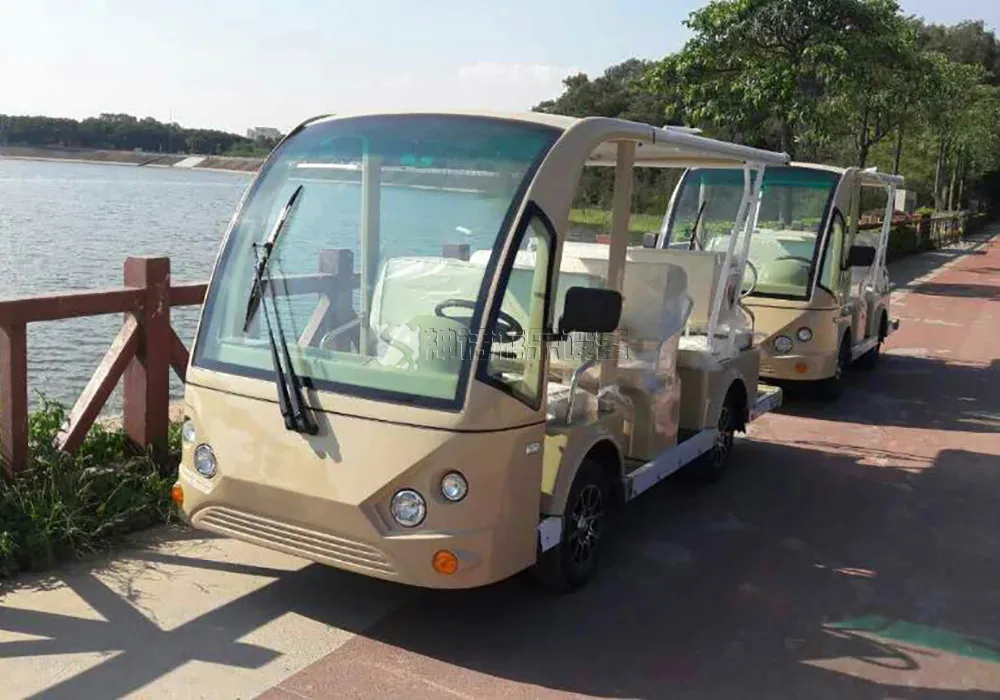

10 Passengers Electric Sightseeing Car , Electric Shuttle Car 7.5kw AC Motor
electric sightseeing car features:
1. Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure
3. Small turning radius; and smart steering system ;Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. Four wheels hydraulic braking system and independent parking brake.
| Model | JH-Y06 | Driving range | 60-80km |
| Shape size | 3800*1500*2000mm | Climbing degree | 20% |
| Number of seats | 6 | Minimum turning radius | ≤5m |
| Voltage | 22ov/110v | Vehicle quality | 1100kg |
| Wheel distance | 1210/1200mm | Maximum travel speed | 30km/h |
| Load capacity | 2050kg | Axis distance | 1970mm |
| Initial speed 20km/h braking distance | ≤4.0m | Minimum ground clearance | 150mm |
| Front file | Steel structure plus FRP | Tire | 165/70R13 Jiatong vacuum radial tire |
| Seat | Leather fabric + high rebound PU | Motion transfer system | Stepless speed regulation system |
| Sound | Advanced audio | Body | Steel frame + FRP shell |
| Front axle and suspension | McPherson independent suspension | Steering system | One-way rack and pinion steering gear |
| Rear axle and suspension | Integral rear axle, with a main reduction gear and differential, leaf spring suspension and a hydraulic cartridge Save |
Dashboard | Vehicle instrument panel, voltmeter, ammeter, battery indicator, steering indicator, steering beep, power failure alarm and printing instrument |
| Braking system | Four round automobile form hydraulic brake system and independent in vehicle brake | Electronic control | Original IN-POWER AC controller |
Zhengzhou Mythology Amusement Equipment Co., Ltd.
Company Information
1). Founded in 2008, with more than 10 years experience in Producing the Electric Sightseeing Car
400 employees including more than 70 engineers;
2). There are more than 400 employees in our factory, including 20 sales and 20 engineers ,specialized services for overseas markets
3). Our products are shipped to more than 80 countries around the world
4). North America ,European, Australia and Asia are the main market.
5). 6 years Made in China gold supplier
